سرور رکمونت PowerEdge R740 Dell EMC – سرور دل

سرور Dell EMC PowerEdge R740 برای افزایش راندمان پردازش و استفاده از کارت های شتاب دهنده و افزایش فضای ذخیره سازی طراحی شده است. ساختار دو سوکت و 2U بهترین تناسب پردازش و منابع را برای محیط های در حال توسعه فراهم می آورد.
ساختار معماری قابل توسعه Dell EMC PowerEdge R740 امکان استفاده از سه عدد GPU با توان 300W یا 6 عدد GPU با توان 150W را می دهد. همچنین امکان استفاده از 16 عدد هارد دیسک 2.5 اینچ یا 8 عدد هارد دیسک 3.5 اینچ محیط استفاده از طیف وسیعی از پردازش های مجازی و نرم افزار ها را برای استفاده از VDI یا مجازی سازی دسکتاپ فراهم می آورد.
در مقایسه با مدل Dell EMC PowerEdge R730 شما امکان اتصال 50 درصد کاربران بیشتر را خواهید داشت. همچنین وجود درگاه داخلی M.2 SSD باعث آزاد شدن فضای ذخیره سازی هارد دیسک ها می شود.

این گروه ، پر استفاده ترین خانواده سرور های Dell EMC می باشد که برای سازمان های متوسط و بزرگ که امکان توسعه در آینده را خواهند داشت ، مناسب می باشد . با استفاده از هارد دیسک های با ظرفیت بالای Dell امکان استفاده از این سرور به عنوان ذخیره ساز نیز فراهم می باشد .

ویژگی های اصلی

  1. دو سوکت پردازنده تا 28 هسته برای هر CPU
  2. 24 اسلات رم تا 3TB حافظه از نوع DDR4
  3. امکان استفاده از 12 اسلات رم برای NVDIMM
  4. دارای کنترلر RAID بسیار قوی سخت افزاری
  5. پشتیبانی از 8 عدد هارد دیسک های 3.5 اینچی یا 16 عدد هارد دیسک های 2.5 اینچی
  6. پشتیابی از 2 منبع تغذیه با ظرفیت خروجی 495W تا 2000W

سرور رکمونت PowerEdge R740 Dell EMC – سرور دل

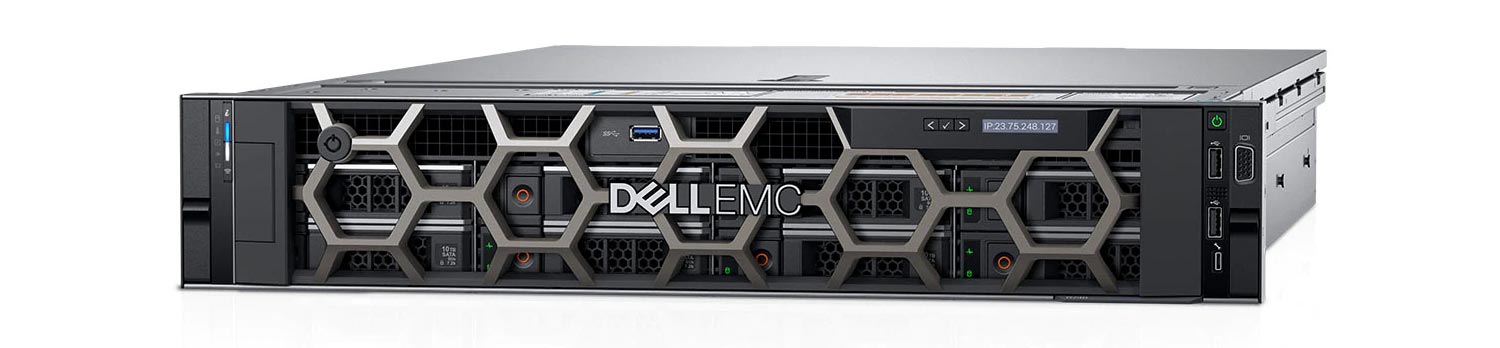

PowerEdge R740 Rack Server-Performance in a density-optimized 1U, 2-socket rack server

General-purpose workhorse optimized for workload acceleration

lt Maximize your application performance with the PowerEdge R740 server, which brings you the perfect balance of accelerator cards, storage and compute resources in a 2U, 2-socket platform. With a wide range of GPU and FPGA options, the R740 has the versatility to adapt to virtually any application and provides the optimum platform for VDI deployments. The R740 offers up to 16 x 2.5” or 8 x 3.5” drives and iDRAC9, so you can scale to meet demands and simplify the entire IT lifecycle.

Ideal workloads:

  • Cloud applications/Web tech
  • XaaS
  • HPC
  • Virtualization


Achieve IT transformation with the Dell EMC PowerEdge portfolio

The R740 is a general-purpose workhorse optimized for workload acceleration. With its versatility, the R740 can help you transform your data center for VDI, artificial intelligence and software-defined storage (SDS).

  • Simplify and accelerate VMware vSAN™ deployments with validated, pre-bundled and tailored Ready Nodes.
  • Scale compute resources with 2nd Generation Intel® Xeon® Scalable processors and tailor performance based on your unique workload requirements.
  • Scale your VDI deployments with 3 double-width GPUs, supporting up to 50% more users when compared to R730 .
  • Free up storage space using internal M.2 SSDs optimized for boot.


Automate productivity with intelligent, embedded management

Dell EMC automation and intelligent management mean you spend less time on routine maintenance so you can focus on bigger priorities.



  • Help maximize uptime and reduce the IT effort to resolve issues by up to 72%* with ProSupport Plus and SupportAssist.
  • Leverage existing management consoles with easy integrations for VMware® vSphere®, Microsoft® System Center and Nagios®.
  • Help improve productivity with agent-free Dell EMC iDRAC9 for automated, efficient management.
  • Simplify deployment with OpenManage next-generation console and server profiles to fully configure and prep servers in rapid, scalable fashion.


Fortify your data center with comprehensive protection

Dell EMC provides a comprehensive, cyber-resilient architecture with security embedded into every server to protect your data.



  • Protect server configuration and firmware from malicious changes with new Configuration Lock-down.
  • Use system erase of local storage to help ensure data privacy when you repurpose or retire servers.
  • Automate updates that check file dependencies and proper update sequence, before deploying them independently from the OS/hypervisor.
  • Take control of your firmware consoles with embedded authentication that is designed to allow only properly signed updates to run.

اطلاعات بیشتر

خانواده و تعداد پردازنده

up to 28 cores per processor, Up to two Intel® Xeon® Scalable processors

حافظه

24 DDR4 DIMM slots, 3TB max Up to 12 NVDIMM, 192 GB Max, speeds up to 2666MT/s, Supports RDIMM /LRDIMM, Supports registered ECC DDR4 DIMMs only

Storage controllers

Internal controllers: PERC H330, H730p, H740p, Software RAID (SWRAID) S140, Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB, External PERC (RAID): H840, 12Gbps SAS HBAs (non-RAID): External- 12 Gbps SAS HBA (non-RAID), Internal- HBA330 (non-RAID)

Drive bays

Front drive bays: Up to 16 x 2.5” SAS/SATA (HDD/SSD) max 61TB or up to 8 x 3.5” SAS/SATA HDD max 96TB, Optional DVD-ROM, DVD+RW

Power supplies

Titanium 750W, Platinum 495W, Platinum 750W, Platinum 1100W, Platinum 1600W, Platinum 2000W, 48VDC 1100W, 380HVDC 1100W, 240HVDC 750W (China/Japan), Hot plug power supplies with full redundancy, Up to 6 hot plugs fans with full redundancy

Dimensions

Form factor: Rack (2U), Max depth: 715.5 mm

Embedded management

IPMI 2.0 compliant, iDRAC9 with Lifecycle Controller (Express, Enterprise), Quick Sync 2 wireless module optional

Bezel

Optional LCD Bezel or Security bezel

OpenManage™ Software

OpenManage Enterprise, OpenManage Essentials, OpenManage Mobile, OpenManage Power Center

Integrations and connections

Integrations: Microsoft® System Center, VMware® vCenter™, BMC Software, Connections: Nagios & Nagios XI, Oracle Enterprise Manager, HP Operations Manager, IBM Tivoli Netcool/OMNIbus, IBM Tivoli® Network Manager, CA Network and Systems Management

Accelerator options

Up to three 300W or six 150W GPUs, or up to four FPGAs, Nvidia Tesla P100, K80, K40, Grid M60, M10, P4, Quadro P4000, NVIDIA V100, or Intel Arria® 10GX FPGA

Security

TPM 1.2/2.0 optional, Cryptographically signed firmware, Secure Boot, System Lockdown, Secure erase

I/O & Ports

Network daughter card options : 4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE, Front ports: Video, 2 x USB 2.0, available USB 3.0, dedicated IDRAC Direct Micro-USB, Rear ports: Video, serial, 2 x USB 3.0, dedicated iDRAC network port, Video card: VGA, Riser options with up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots

Supported operating systems

Canonical® Ubuntu® LTS, Citrix® XenServer®, Microsoft Windows Server® with Hyper-V, Red Hat® Enterprise Linux, SUSE® Linux Enterprise Server, VMware® ESXi

OEM-ready version available

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you
